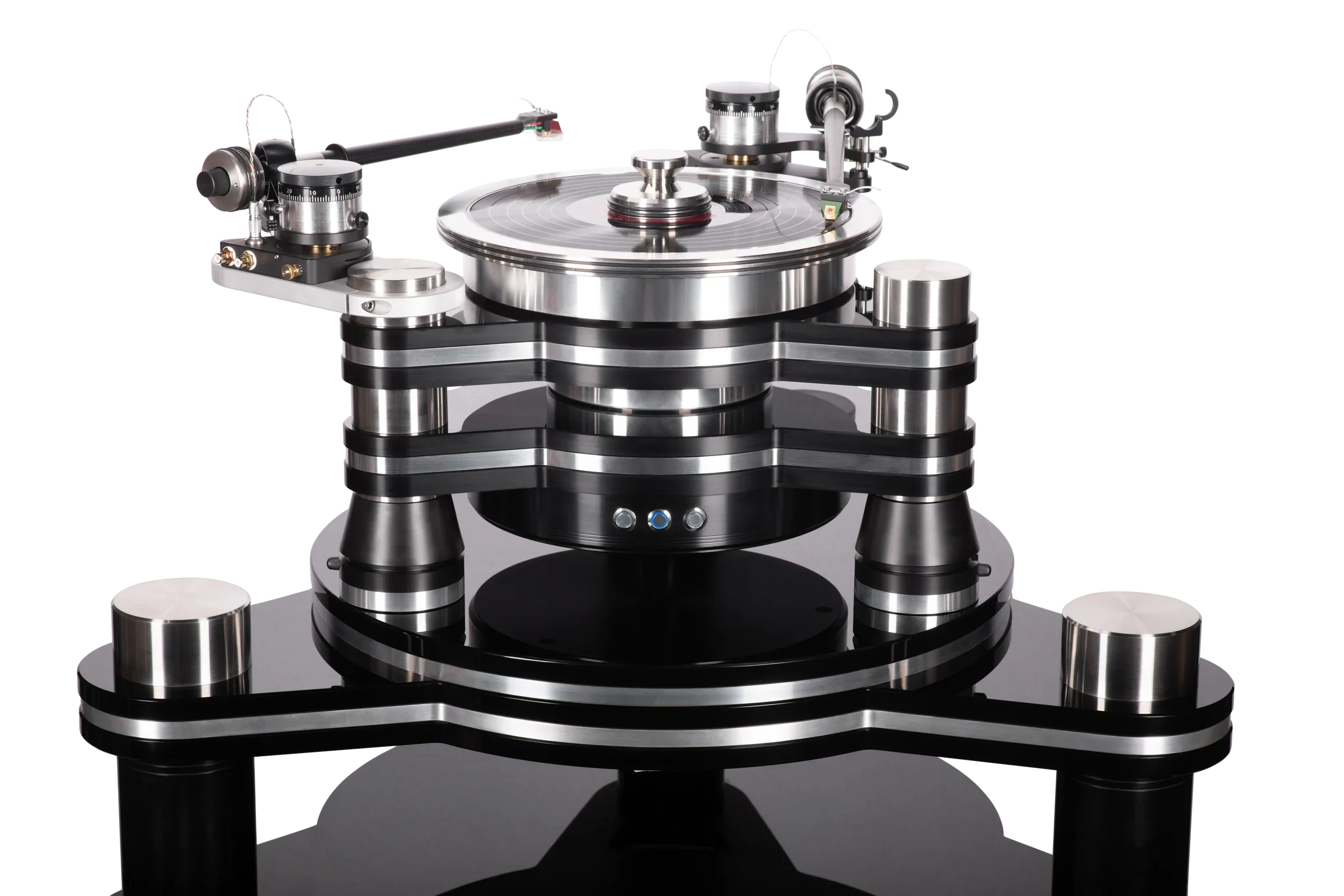

The Titan Direct is an industrial design statement turntable. VPI has learned from all Direct Drive tables and isolation/material science of 45 years of experience.
Technical Specifications
Chassis Composition: Aluminum and machined acrylic
Platter Type & Size: 12" Aluminum Platter, 25LBS
Tonearm Included: JMW-12- Fatboy Gimbal
Motor Type: Direct Drive
Motor Torque: 2.68 Nm/sec
Star/Stop Time: 1 Second
Speed Monitoring: 2,500 pulses/revolution
Footprint: 21¾" x 16 ¾"
Overall Size: 22" x 17" x 15"
Total Weight: 90lbs
Warranty
All turntables benefit from a 5-year warranty.
VPI Fatboy Gimbal 12-3D
Bearing Type: Full Gimbal Bearing
Pivot to spindle: 300 mm
Internal Wire: Nordost Reference Wire
Effective length: 313.0 mm
Effective mass: 12.5g.
Overhang: 13mm
Offset angle: 17.37 degrees
Average RMS distortion: 0.267%
Material: 3D Technology Consisting of but not limited to Epoxy resin and Delrin materials, copper, aluminum, and steel
Product Notes: Adjustable Counterweight, Azimuth side weights, VTA, and Limo Connection.
Our efforts are to continue raising the bar on performance standards while embracing our love of music. American engineering at its finest brought by dedicated and passionate workers who love what they do!
Mat Weisfeld, VPI
